Compass Vibrating Bin Dischargers are widely used in various industries including below but not limited to:

Petrochemical, Polymer, Chemcial, Plastics, Mineral, Coal, Food, Dairy, Feed, Grain, Battery Materials, Water Treatment etc.

康柏斯振动锥广泛应用于许多工业领域,包括且不限于:

石油化工、聚合物、化工、塑料、矿冶、煤、食品、奶粉、饲料、谷类、电池材料、水处理等等。



We provide Vibrating Bin Dischargers which eliminate two most common bin / silo / hopper gravity flow discharging problems:

我们提供的料仓下料振动锥(或称料仓振动下料锥),解决了料仓、料斗、储罐重力流下料过程中常见的两大难题:



Eliminate Bridging and Ratholing 消除架桥和鼠洞

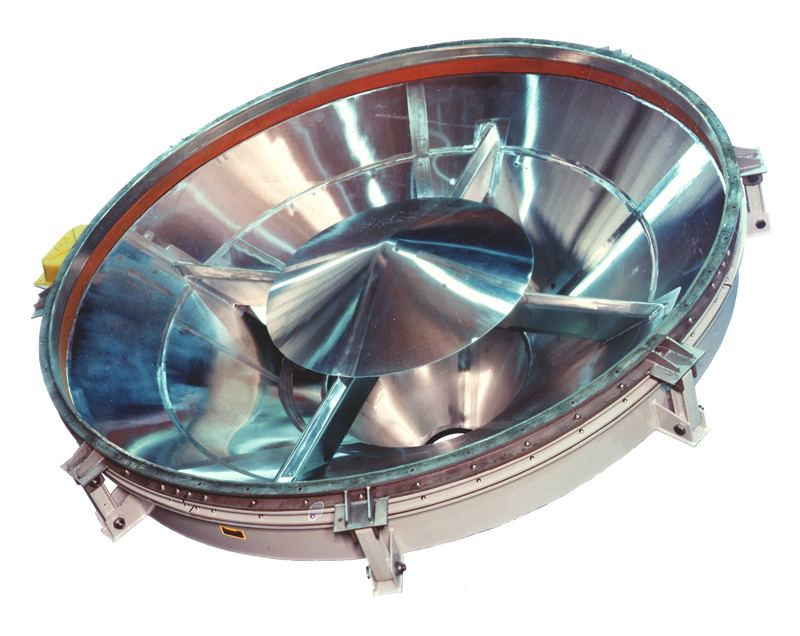

Compass Vibrating Bin Discharger eliminates gravity discharge ratholing by increasing the effective bin outlet size, at the same time the discharger's internal pressure cone eliminates bridging during discharging.

康柏斯料仓振动下料锥有效增加了整个料仓出料截面积、消除了重力流鼠洞,同时内部的压力锥消除了物料架桥。



Expanded Flow at Full Bin Section 将料层下降扩大到整个料仓截面
Compass Vibrating Bin Discharger typically helps the bulk solids at outer cycular section flow to bin central section. When the bulk solids in the central section are lowered during discharging, the bulk solids along the upper/outer walls sloughs off into the central flowing channel, and this cycle repeats until full bin is discharged (assumes there is no reflling into the bin).

康柏斯料仓振动下料锥极大地促使料仓外围固体散料流向中部。但中部物料在出料过程中因为中心流作用下降时,外围物料将会倒向因振动锥下料出现的较大的中心流截面,这个过程在整个料仓下料过程中会不断重复实现整个料仓截面出料(假定在下料时料仓内没有继续进料)。

Along with discharge aid, our Vibrating Bin Discharger reduces the cone height of silo / bin / hopper significantly especially for poor flow product which requires 60 ~70 degree or more cone angle to horizontal.

在解决物料架桥的同时,我们的料仓振动锥非常有效地降低了料仓锥部高度,尤其是对那些需要60~70度甚至更大角度仓壁倾角(与水平面夹角)的不易流动性物料。
